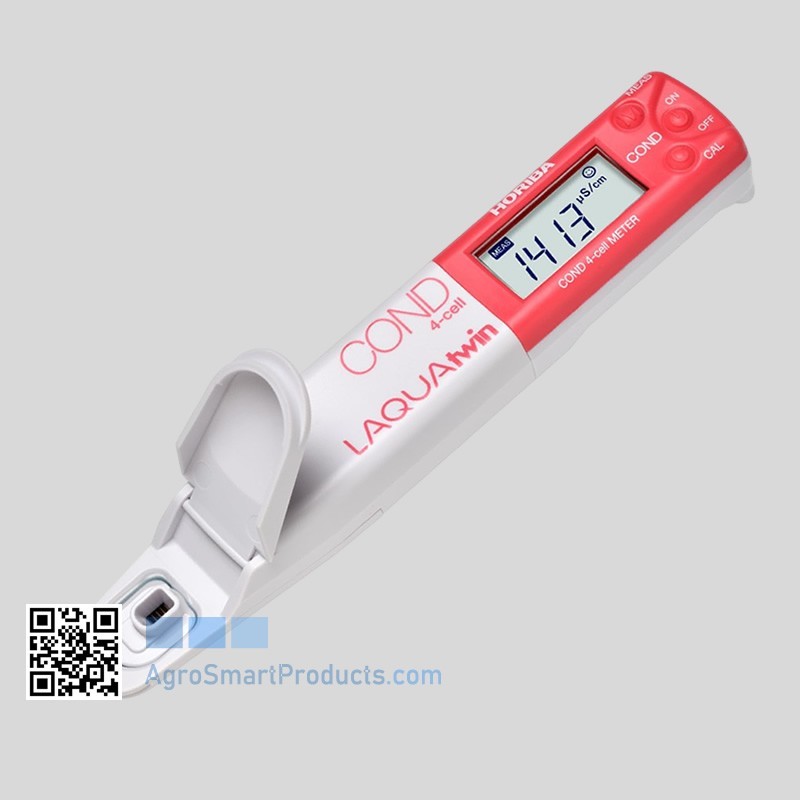

EC, Tª and TDS HORIBA LAQUAtwin 4EC-33 – Conductivity, TDS and Temperature Meter. 3201077524
€173.04
The HORIBA LAQUAtwin 4EC-33 is a portable conductivity, TDS and temperature meter designed for fast measurements directly from the sample.
It requires only 0.12 mL of sample and offers conductivity measurements up to 199.9 mS/cm, TDS measurements up to 9990 ppm, temperature measurement from 0 to 50 °C, up to 4-point calibration, a replaceable sensor and IP67 protection.
HORIBA LAQUAtwin 4EC-33 – Conductivity, TDS and Temperature Meter
The HORIBA LAQUAtwin 4EC-33 is a portable conductivity, TDS and temperature meter designed for fast and simple measurements directly from the sample.
Its compact pocket-sized design integrates the sensor, display and measurement area into one practical instrument, allowing measurements to be performed using a very small sample volume.
Conductivity, TDS and temperature measurement
The main advantage of the LAQUAtwin 4EC-33 is its ability to measure three parameters with a single instrument:
- Electrical conductivity (EC)
- Total dissolved solids (TDS)
- Temperature
Wide conductivity range
The LAQUAtwin 4EC-33 uses a 4-electrode measurement method and provides a conductivity range of up to 199.9 mS/cm.
- 0 to 199 μS/cm
- 200 to 1999 μS/cm
- 2.00 to 19.99 mS/cm
- 20.0 to 199.9 mS/cm
TDS measurement up to 9990 ppm
The LAQUAtwin 4EC-33 includes TDS (Total Dissolved Solids) measurement, allowing total dissolved solids values to be obtained from measured conductivity.
- 0.0 to 99.9 ppm
- 100 to 999 ppm
- 1000 to 9990 ppm
Four TDS curves
The 4EC-33 provides several TDS conversion curves:
- TDS Factor, adjustable from 0.4 to 1.0.
- EN 27888.
- 442.
- NaCl.
Temperature measurement
The HORIBA LAQUAtwin 4EC-33 measures sample temperature from 0 to 50 °C and features automatic temperature compensation.
Up to 4-point calibration
The LAQUAtwin 4EC-33 supports up to 4-point calibration and automatic recognition of calibration standards.
Recognised standards include:
- 84 μS/cm
- 1413 μS/cm
- 12.88 mS/cm
- 111.8 mS/cm
Only 0.12 mL of sample
Only 0.12 mL of sample is required for measurement, making the instrument particularly useful when sample quantities are limited.
Replaceable sensor
The instrument features a replaceable sensor, simplifying maintenance and helping extend the service life of the meter.
IP67 protection
The LAQUAtwin 4EC-33 features IP67 protection, making it suitable for laboratory and field applications.
Applications
- Water quality control
- Drinking water
- Laboratories
- Pharmaceutical industry
- Semiconductor industry
- Food and beverage industry
- Agriculture
- Aquaculture
- Boiler feed water
- Total dissolved solids testing
Technical specifications
| Model | HORIBA LAQUAtwin 4EC-33 |
| Type | Portable conductivity, TDS and temperature meter |
| Measurement principle | 4-electrode method |
| Minimum sample volume | 0.12 mL |
| Conductivity range | 0 to 199.9 mS/cm |
| Conductivity resolution | 1 μS/cm, 0.01 mS/cm and 0.1 mS/cm |
| TDS range | 0.0 to 9990 ppm |
| TDS resolution | 0.1 ppm, 1 ppm and 10 ppm |
| TDS curves | TDS Factor, EN 27888, 442 and NaCl |
| TDS factor | Adjustable from 0.4 to 1.0 |
| Calibration | Up to 4 points |
| Temperature measurement | Yes |
| Temperature range | 0 to 50 °C |
| Automatic temperature compensation | Yes |
| Protection | IP67 |
| Sensor | Replaceable |
| Display | Backlit monochrome digital LCD |
| Power supply | 2 × CR2032 batteries |
| Dimensions | 164 × 29 × 20 mm |
| Part number | 3201077524 |
Why choose the HORIBA LAQUAtwin 4EC-33?
The HORIBA LAQUAtwin 4EC-33 is the most versatile model in the LAQUAtwin 4EC series, combining conductivity, TDS and temperature measurement in a single compact instrument.
Its ability to work with only 0.12 mL of sample, four TDS conversion curves, up to 4-point calibration, automatic temperature compensation, replaceable sensor and IP67 protection make it a versatile solution for professional water and liquid analysis.
