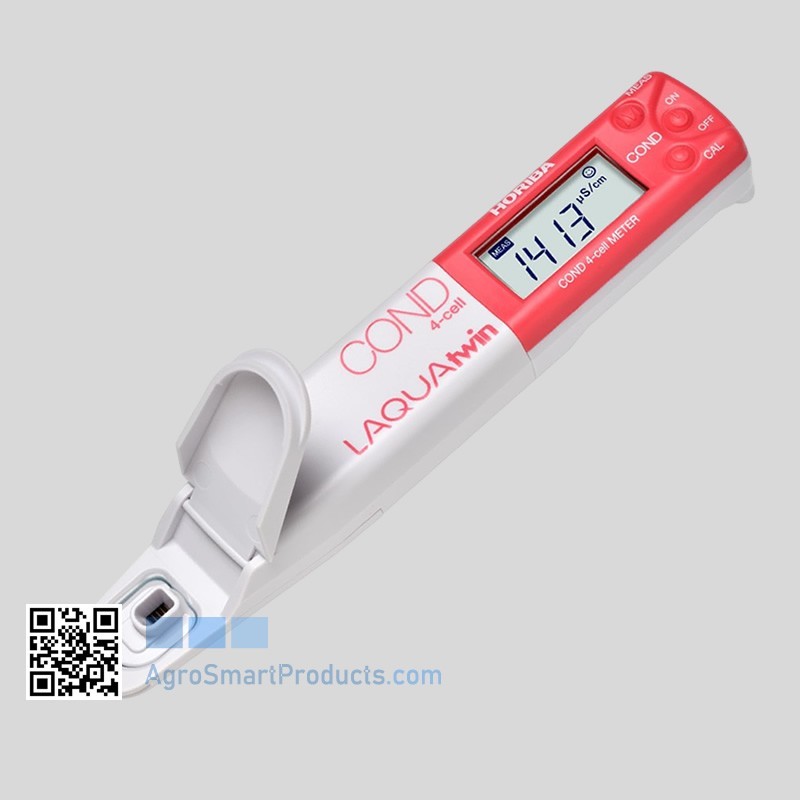

EC HORIBA LAQUAtwin 4EC-11 – Portable Conductivity Meter. 3201077522
€118.45
The HORIBA LAQUAtwin 4EC-11 is a portable pocket conductivity meter designed for fast, simple and accurate measurements directly from the sample.
It offers a conductivity measurement range of 0 to 19.99 mS/cm, requires only 0.12 mL of sample and features a replaceable sensor, up to 3-point calibration, automatic temperature compensation (ATC) and IP67 waterproof protection.
HORIBA LAQUAtwin 4EC-11 – Portable Conductivity Meter
The HORIBA LAQUAtwin 4EC-11 is a compact portable conductivity meter designed for fast and simple conductivity measurements directly from the sample and at the point of use.
Its pocket-sized design makes it easy to transport and provides a practical measuring solution for laboratory, industrial, agricultural and water testing applications.
Fast and simple conductivity measurement
The LAQUAtwin 4EC-11 uses a 4-cell bipolar AC measurement method and provides measurement results within seconds.
Its conductivity measurement range is 0 to 19.99 mS/cm, divided into the following ranges:
- 0 to 199 μS/cm
- 200 to 1999 μS/cm
- 2.00 to 19.99 mS/cm
One of its main advantages is the very small sample volume required. Only 0.12 mL of sample is needed, making it suitable when only a small amount of liquid is available.
Replaceable sensor
The 4-cell conductivity electrode is user-replaceable and can be changed easily without tools. This simplifies maintenance and helps extend the useful life of the instrument.
The protective cover helps protect the instrument against impact, reduces external interference and acts as a light shield to help improve measurement accuracy.
Simple calibration
The LAQUAtwin 4EC-11 supports up to 3-point calibration. The instrument is supplied with calibration solutions and conditioning solution to facilitate initial operation.
It also features Auto Stable, Auto Hold, a stability indicator, low battery indicator and automatic power-off after 30 minutes.
IP67 protection
The LAQUAtwin 4EC-11 features IP67 protection, making it suitable for applications where the instrument may be exposed to water.
The instrument features a backlit monochrome digital LCD for easy reading of measurement results.
Applications
The LAQUAtwin 4EC-11 can be used in a wide range of applications, including:
- Semiconductor industry
- Pharmaceutical industry
- Boiler feed water
- Drinking water
- General laboratory applications
- Food and beverage industry
- Agriculture
- Aquaculture
- Arts and other applications
Technical specifications
| Model | HORIBA LAQUAtwin 4EC-11 |
| Type | Pocket conductivity meter |
| Measurement principle | 4-cell bipolar AC method |
| Conductivity range | 0 to 19.99 mS/cm |
| Minimum sample volume | 0.12 mL |
| Resolution | 1 μS/cm and 0.01 mS/cm |
| Calibration | Up to 3 points |
| Accuracy | ±2% F.S. for each range |
| Automatic temperature compensation (ATC) | Yes |
| Protection | IP67 |
| Sensor | User-replaceable |
| Display | Backlit monochrome digital LCD |
| Power supply | 2 × CR2032 batteries |
| Approx. battery life | 400 hours continuous operation without backlight |
| Dimensions | 164 × 29 × 20 mm |
| Weight | Approx. 55 g |
| Part number | 3201077522 |
Why choose the HORIBA LAQUAtwin 4EC-11?
The HORIBA LAQUAtwin 4EC-11 combines a compact pocket-sized design with fast and simple conductivity measurement. Its low sample volume requirement, replaceable sensor, up to 3-point calibration, automatic temperature compensation and IP67 protection make it a practical solution for conductivity measurements in the laboratory and in the field.
